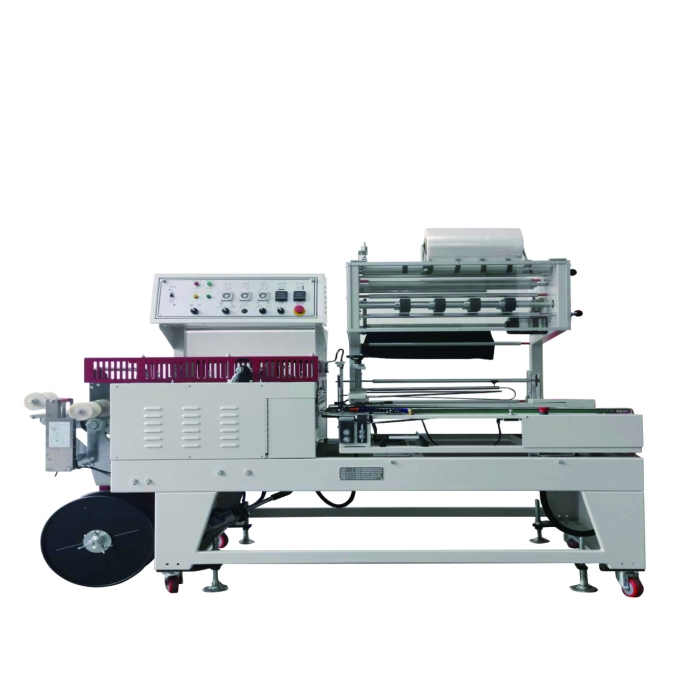

※ 商品編(型)號:LA-900
※ 產品規格:適用於各類產品收縮包裝,適用於OPP、PP、PE、POF等塑膠收縮包裝材料
型錄下載
※ 產品規格:適用於各類產品收縮包裝,適用於OPP、PP、PE、POF等塑膠收縮包裝材料
產品詳細資訊
型 號 MODEL | LA-900 |
封 口 尺 寸 TUNNEL DIMENSION | 750 X 840 mm |
包 裝 能 力 PACKING CAPACITY | 20 pcs |
包裝物高度 MAXIMUM PRODUCT HEIGHT | 10 - 140 mm |
電 源 POWER SOURCE | 1Ø220V 50/60 HZ |
機 械 尺 寸 MACHINE DIMENSION ( L X W X H mm) |
2550 X 1200 X 1580 mm |
特性
- 適用於各類產品收縮包裝,適用於OPP、PP、PE、POF等塑膠收縮包裝材料。
- 封口時,無煙產生,淨化工作環境。
- 立即包裝,將包裝物品放置輸送帶上,即能輕易的進行包裝。
- 電眼控制裝置,可做垂直與水平的選擇,依物品大小厚薄而決定。
- 節省人工成本,一人操作即可,將物品放置輸送帶上,就能輕易的進行包裝。
- 節省電源及縮短包裝工時。
- 操作簡單,保養容易。
- 歡迎訂製特殊規格、多用途包裝機。
FEATURES
- Best for individual or integrated packing, using heat sealable center folded film, OPP、PP、PE、POF etc.,PRO-TECH L-Sealer are best for packing boxes of a variety of products.
- NO fumes and smoke during seal cut Perfect sealing can now be accomplished in a comfortable,clean environment.
- Instantaneous packing Center folded film is automatically opened by use of the uniquely designed Molding Board.
- Dual product is sealable with this unique device which precisely controls the needed length of film for the item to be packed.
- Labor cost saving All you need to do is to load the product onto the infeed conveyor.
- Energy and time saving Smooth and high speed operation.
- Easy adjustment, maintenance and operation.
- Custom-made versions are also welcome If the standard machines are not suitable due to special packing requirements, we can custom make equipment to your specific needs.
範例影片 / Video
由於本公司不斷的研究改進,本型錄所示之機械規格、設計特性,本公司有變更之權力,恕不另行通知。
All specifications,design and characteristics shown on this catalogue are subject to change without prior notice.
