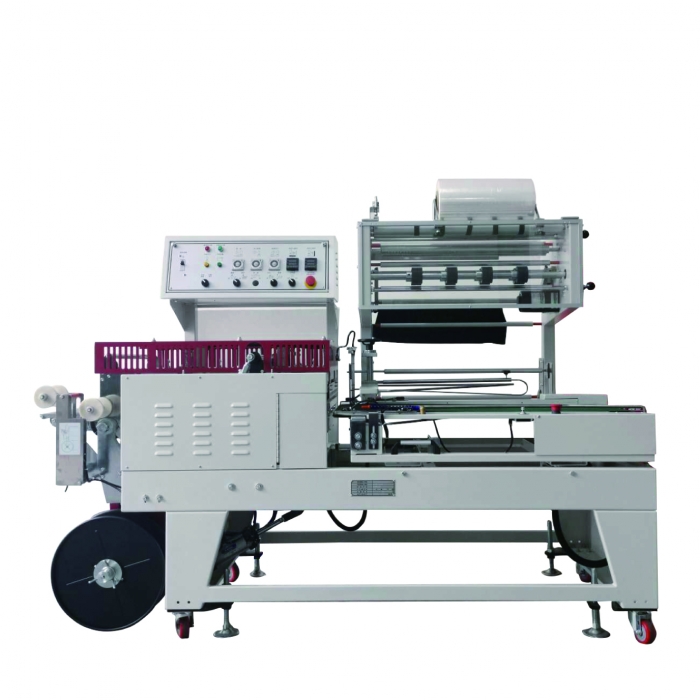

L型全自動包裝機 LA-700

※ 商品編(型)號:LA-700
※ 產品規格:適用於各類產品收縮包裝,適用於OPP、PP、PE、POF等塑膠收縮包裝材料
型錄下載

產品詳細資訊

型        號    MODEL  LA-700
 封 口 尺 寸   TUNNEL DIMENSION  510 X 640 mm
 包 裝 能 力   PACKING CAPACITY  20 pcs
 包裝物高度  MAXIMUM PRODUCT HEIGHT  10 - 100 mm
 電         源   POWER SOURCE  1Ø220V 50/60 HZ
 機 械 尺 寸   MACHINE DIMENSION
                    ( L X W X H mm)
 2100 X 1000 X 1580 mm



特性

  • 適用於各類產品收縮包裝,適用於OPP、PP、PE、POF等塑膠收縮包裝材料。
  • 封口時,無煙產生,淨化工作環境。
  • 立即包裝,將包裝物品放置輸送帶上,即能輕易的進行包裝。
  • 電眼控制裝置,可做垂直與水平的選擇,依物品大小厚薄而決定。
  • 節省人工成本,一人操作即可,將物品放置輸送帶上,就能輕易的進行包裝。
  • 節省電源及縮短包裝工時。
  • 操作簡單,保養容易。
  • 歡迎訂製特殊規格、多用途包裝機。



FEATURES

  • Best for individual or integrated packing, using heat sealable center folded film, OPP、PP、PE、POF etc.,PRO-TECH L-Sealer are best for packing boxes of a variety  of products.
  • NO fumes and smoke during seal cut Perfect sealing can now be accomplished in a comfortable,clean environment.
  • Instantaneous packing Center folded film is automatically opened by use of the uniquely designed Molding Board.
  • Dual product is sealable with this unique device which precisely controls the needed length of film for the item to be packed.
  • Labor cost saving All you need to do is to load the product onto the infeed conveyor.
  • Energy and time saving Smooth and high speed operation.
  • Easy adjustment, maintenance and operation.
  • Custom-made versions are also welcome If the standard machines are not suitable due to special packing requirements, we can custom make equipment to your specific needs.



範例影片1 / Video



範例影片2 / Video

由於本公司不斷的研究改進,本型錄所示之機械規格、設計特性,本公司有變更之權力,恕不另行通知。
All specifications,design and characteristics shown on this catalogue are subject to change without prior notice.
