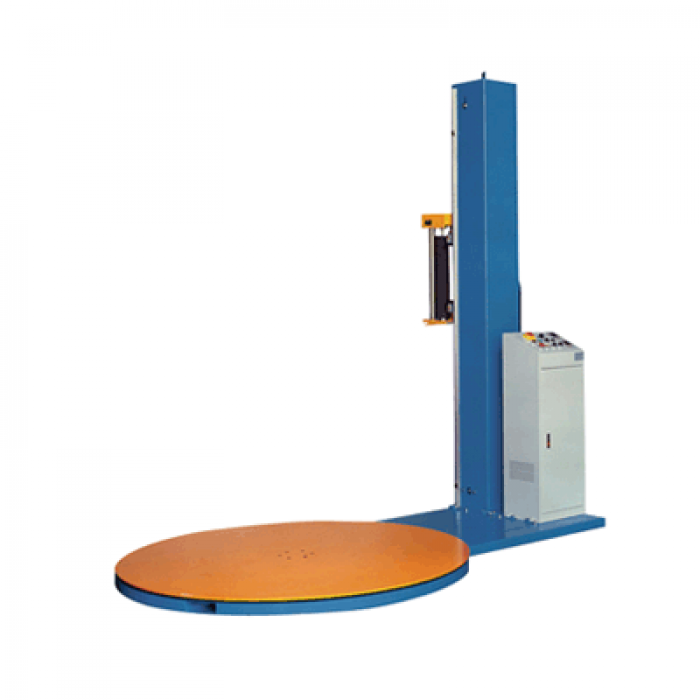

自動裹膜機 PH-1824

※ 商品編(型)號:PH-1824
※ 產品規格:轉盤直徑:1800mm 裹膜高度(含棧板):2400mm
型錄下載

產品詳細資訊

型         號   MODEL  PH-1824
 轉 盤 直 徑   TURNTABLE DIAMETER  1800 mm
 裹 膜 高 度   WRAPPING HIGHT
 ( 含棧板 )     ( including pallet )
 2400 mm
 荷         重   LOADING WEIGHT  Max.2000kgs (4400lbs)
 電         源   POWER SOURCE  Single phase or 3 phase
 220V,380V,415V,440V(50,60Hz)
 耗   電   量   POWER CONSUMPTION  電磁式 Electrical magnetic brake 1.3KW
 轉盤馬達 Turntable motor 1HP
 立柱馬達 Film carriage motor 1/2HP
 耗   電   量   POWER CONSUMPTION  預拉式Power Pre-stretch system 1.7KW
 轉盤馬達 Turntable motor 1HP
 立柱馬達 Film carriage motor 1/2HP
 預拉馬達 Pre-stretch motor 1/2HP
 裹 膜 主 機   FILM CARRIAGE SPEED  電磁式(可調)
 Electrical magnetic brake
(Adjustable)
 選擇配件 Option:
 預拉式  Power pre-stretch system
 轉 盤 速 度   TURNTABLE SPEED  5~15 RPM(可調 Adjustable)
 裹膜上升下降速度 FILM CARRIAGE SPEED  5米/每分鐘(可調)
 5M/per min.(Adjustable)
 PE膜規格   FILM SPEC.  內徑 Film reel core dia.: 76mm
 最大外徑 Film reel outside dia.:
 Max.350mm
 寬度 Width: 500mm
 PE膜厚度   FILM THICKNESS  17~35 microns
 包 裝 尺 寸   PACKING SIZE ( L x W x H )  2970 x 1630 x 810 mm

 特性

  • 採用PLC程式控制,具有專業模組化設計。
  • 變頻器控制馬達速度,可使裹膜的動作與轉速完美配合。
  • 主機膜座以鏈條傳動,上下膜座平穩順暢。(速度可調整)
  • 轉盤以鏈條傳動,荷重轉動,平穩可靠。(速度可調整)
  • 搬運時,膜座柱可直接放倒,不用拆裝主機膜座,節省時間並防止安裝時,可能產生的疏失。
  • 具手動 / 自動操作模式。
  • 具和緩啟動 / 停止功能、裹包順暢、機器壽命長。


FEATURES

  • Utilizes PLC control,equipped with standard organization of professional design.
  • A frequency inverter controls the speed of the motor,so that the film wrapping and rotational speed can be perfectly matched.
  • The film carriage is equipped with hinged drive,for smooth vertica movement.Speed is adjustable.
  • Turntable is equipped with hinged drive,for stable turning during pallet loading.Speed is adjustable.
  • When moving,the pillar can be directly put down.No need to take apart the film carriage.This saves time and prevents negligence when reinstalling.
  • Manual or auto mode of operation.
  • Soft start / stop and wrap smoothly so the machine life is long.



範例影片 / Video


OPTIONS 選購配備

  • Power pre-stretch system,PH-152P
    (50%,100%,150%,200%)預拉式主機(如圖一,Fig-1)
  • Top press plate,PH-1521+P上壓板(如圖二,Fig-2)
  • Access ramp 斜板(如圖三,Fig-3)
  • Extra wrapping protection for the middle when stacking two pallets together.
    (兩棧板上下堆疊時,中間部分補強裹膜)

↑ 圖一(Fig-1)

↑ 圖二(Fig-2)

Other spec is on request 尺寸依不同需要另行訂做。

↑ 圖三(Fig-3)
